25W, push-pull tube output transformer for 8K Ohms to a specified output.
Availability: Product is built to order.
Ship date: 6 weeks
*
$52.00

Design
Mathematically designed to produce exact plate and screen voltages.

Primary (Input)
The input is designed for a 8K Ohms impedance source.

Secondary (Output)

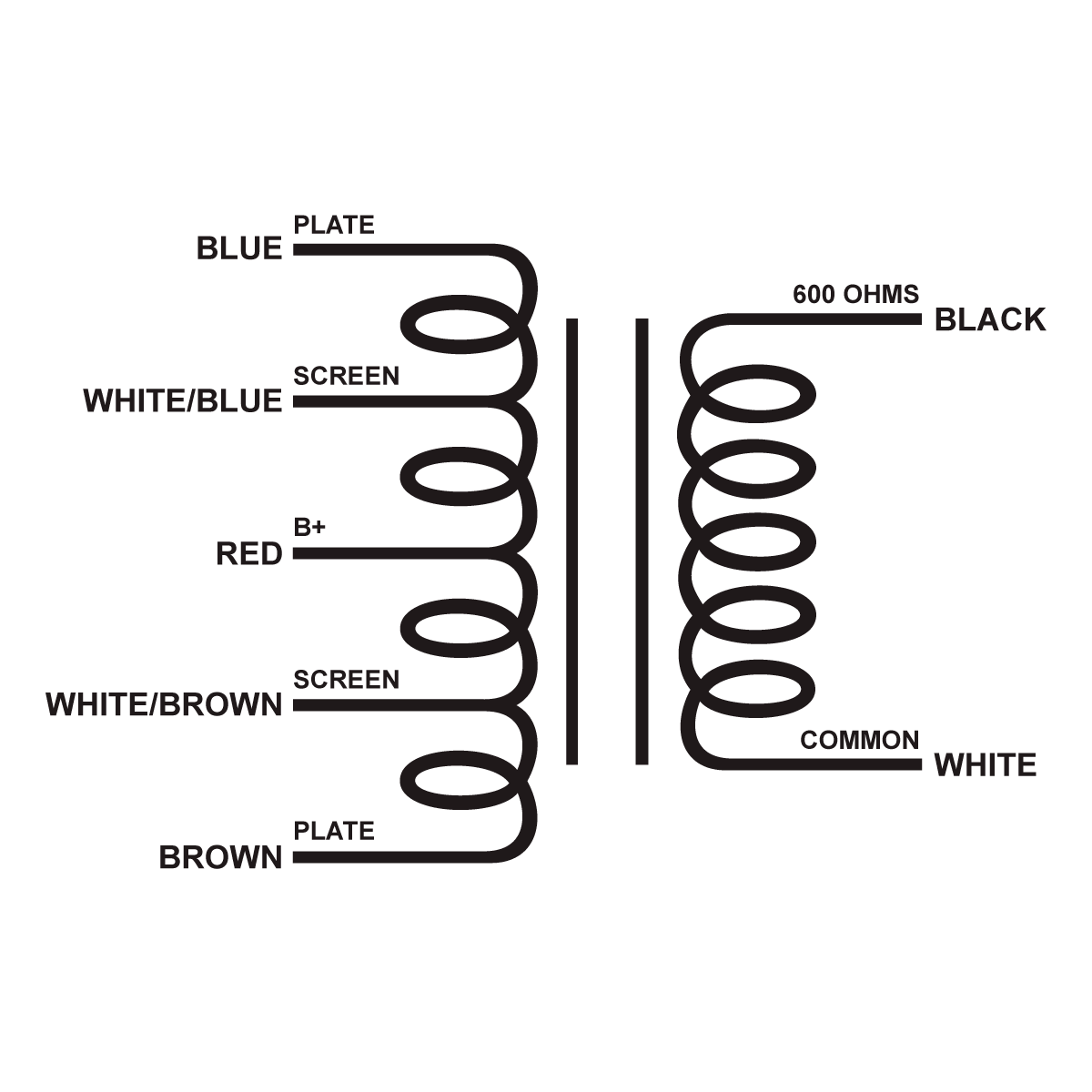

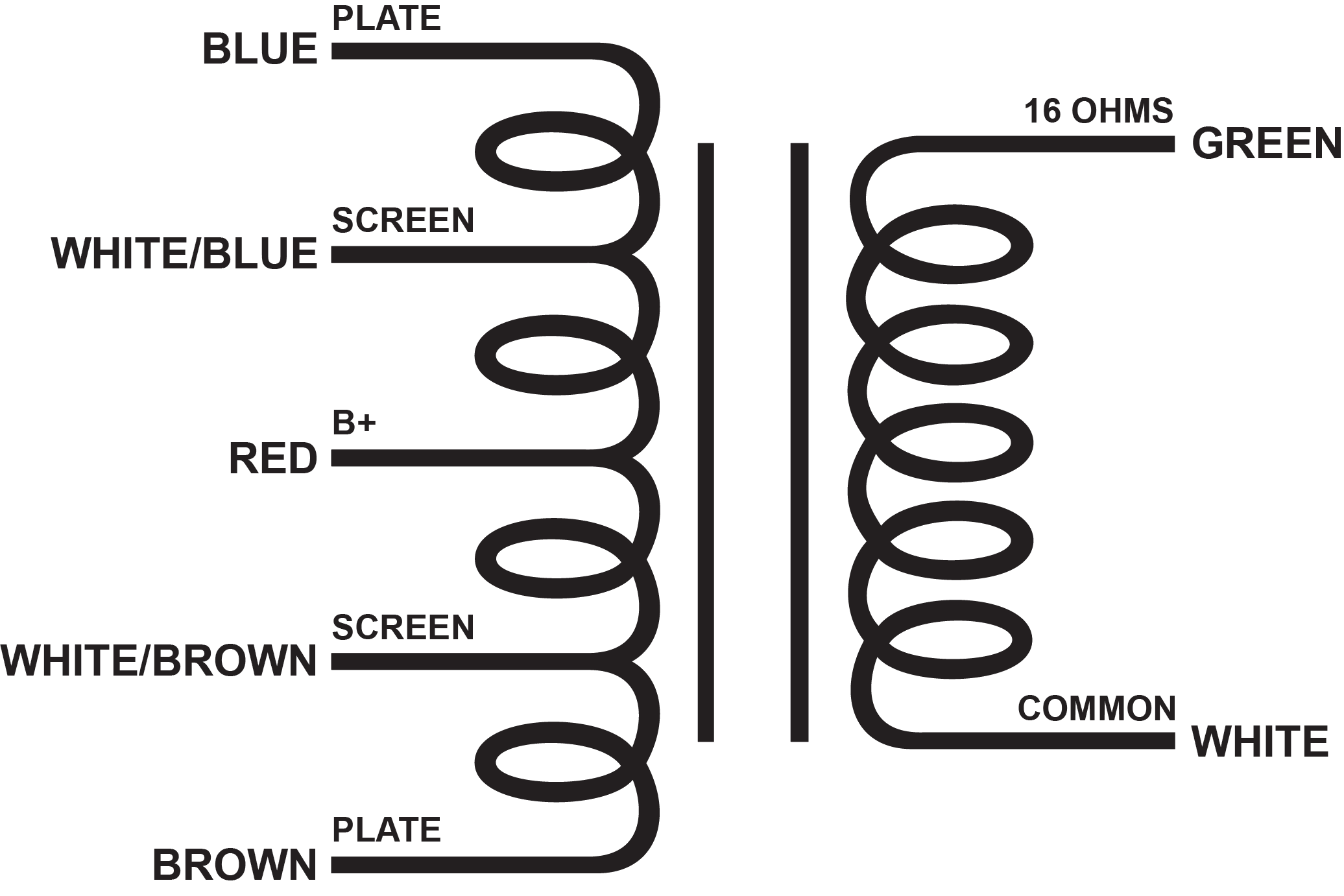

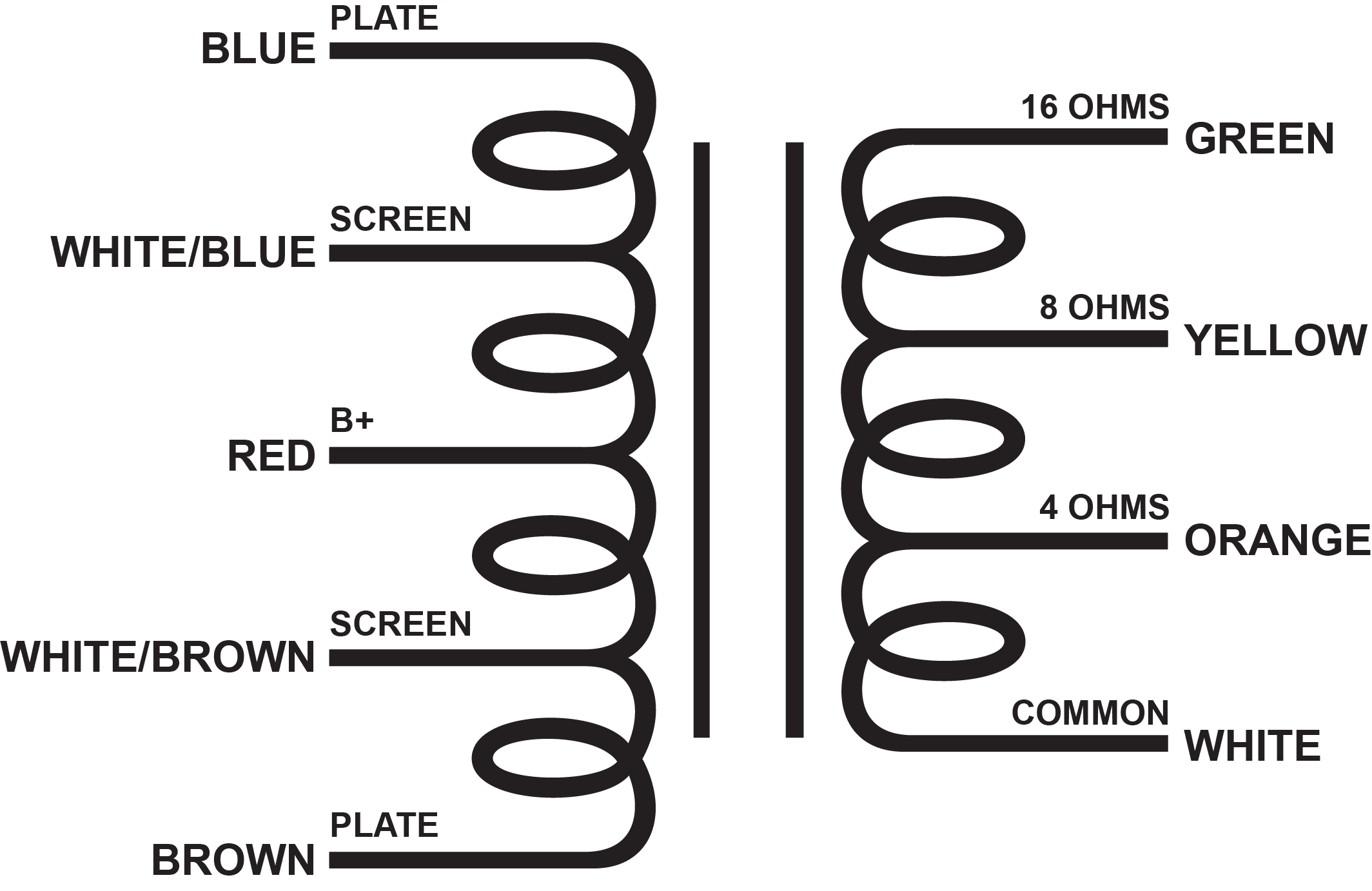

The output is designed for a specified speaker impedance.

Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.

The Bobbin
EDCOR's royal blue bobbin with black finishing tape.

Termination
The terminations are UL1015 20 ga. lead wire.

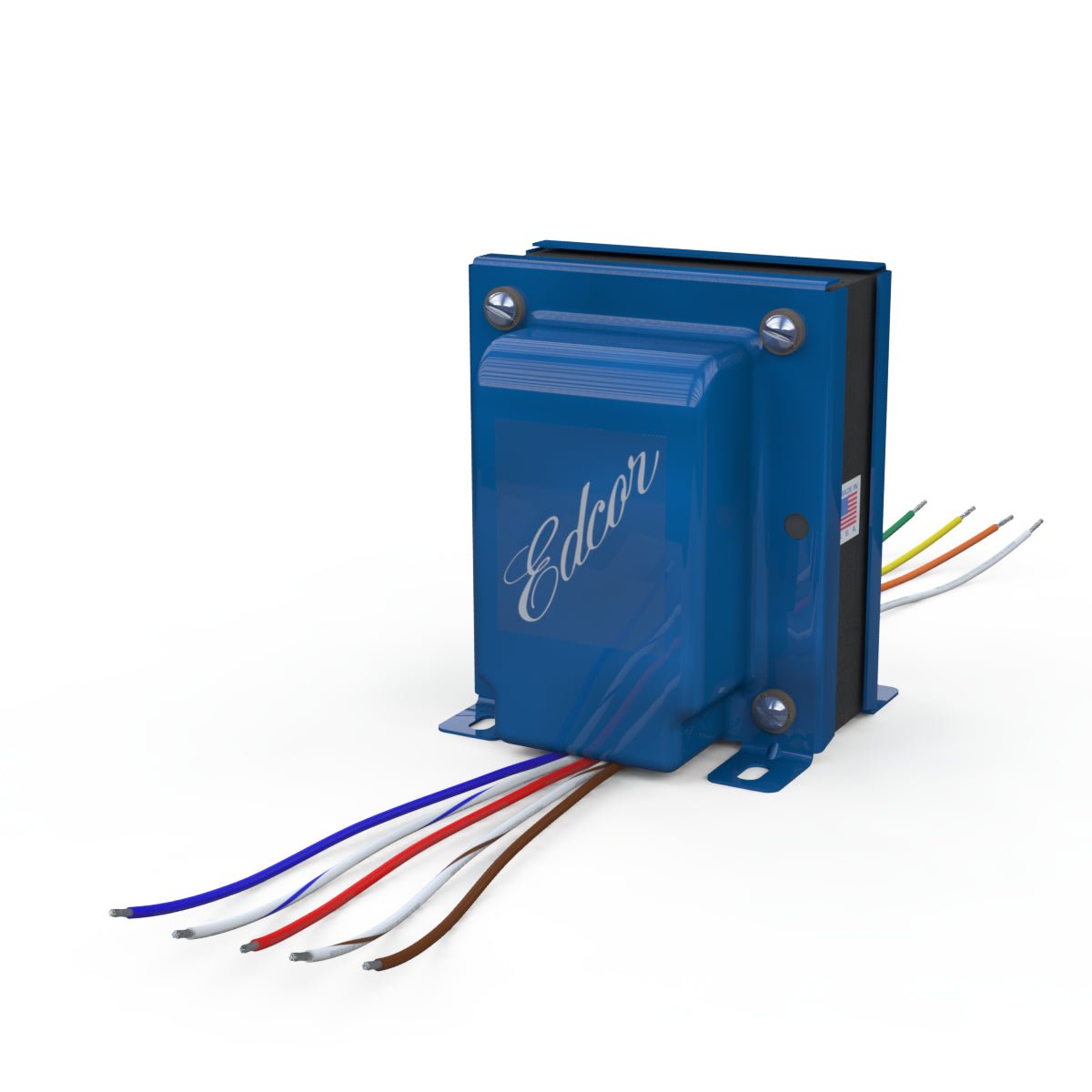

Mounting
This unit comes with steel end bells for mounting with the use of four screws. The end bells are powder coated Gentian Blue (RAL 5010) to add to your tube display and overall appearance.

Design
Mathematically designed to produce exact plate and screen voltages.

Primary (Input)
The input is designed for a 8K Ohms impedance source.

Secondary (Output)
The output is designed for a specified speaker impedance.

Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.

The Bobbin
EDCOR's royal blue bobbin with black finishing tape.

Termination
The terminations are UL1015 20 ga. lead wire.

Mounting
This unit comes with steel end bells for mounting with the use of four screws. The end bells are powder coated Gentian Blue (RAL 5010) to add to your tube display and overall appearance.

Products specifications
Wattage 25W
Primary (input) Impedance 8K Ohms
Primary (input) Max.Current 150mA
Screen/Grid Tap 40%
Secondary (output) Impedance Depends on model.
Frequency Response 20~20K Hz., <1dBu
THD+Noise <0.1% @ 1K Hz.
Bobbin Material Nylon 6/6 GF-30
Flamability Rating Class B 130°C
Core Material M-6 29 ga. grain oriented lamination steel
Secondary Insulation (transformer) Clear air dry polyester varnish
Termination UL1015, 20 ga. lead wire
Mounting Powder coated steel end bells
Color RAL 5010 Gentian Blue
Weight 4.5 lbs.
Compliance RoHS & REACH
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Existing reviews
Nice sound.
Used this for a pair of EL34 tubes in an AC30 based build. Very nice sound and runs very cool. Graet product.
From: Joseph Connolly | Date: 12/5/2013 10:22 AM
Was this review helpful? Yes No (0/0)
