XPWR011

Power transformer for a 120V, 60Hz. line to 800V (400-0-400) at 200mA center tapped, 6.3V (3.15-0-3.15) at 5A center tapped and 5V at 3A.

Availability: Product is built to order.

Ship date: 10 to 12 weeks

1 review(s) | Add your review

Primary (Input) Voltage *

120Vrms, 60Hz.

$85.29

Qty:

Design
Mathematically designed to produce the specified voltage(s) when loaded.

Primary (Input)
Designed for 120V, 60Hz.

Secondary (Output)

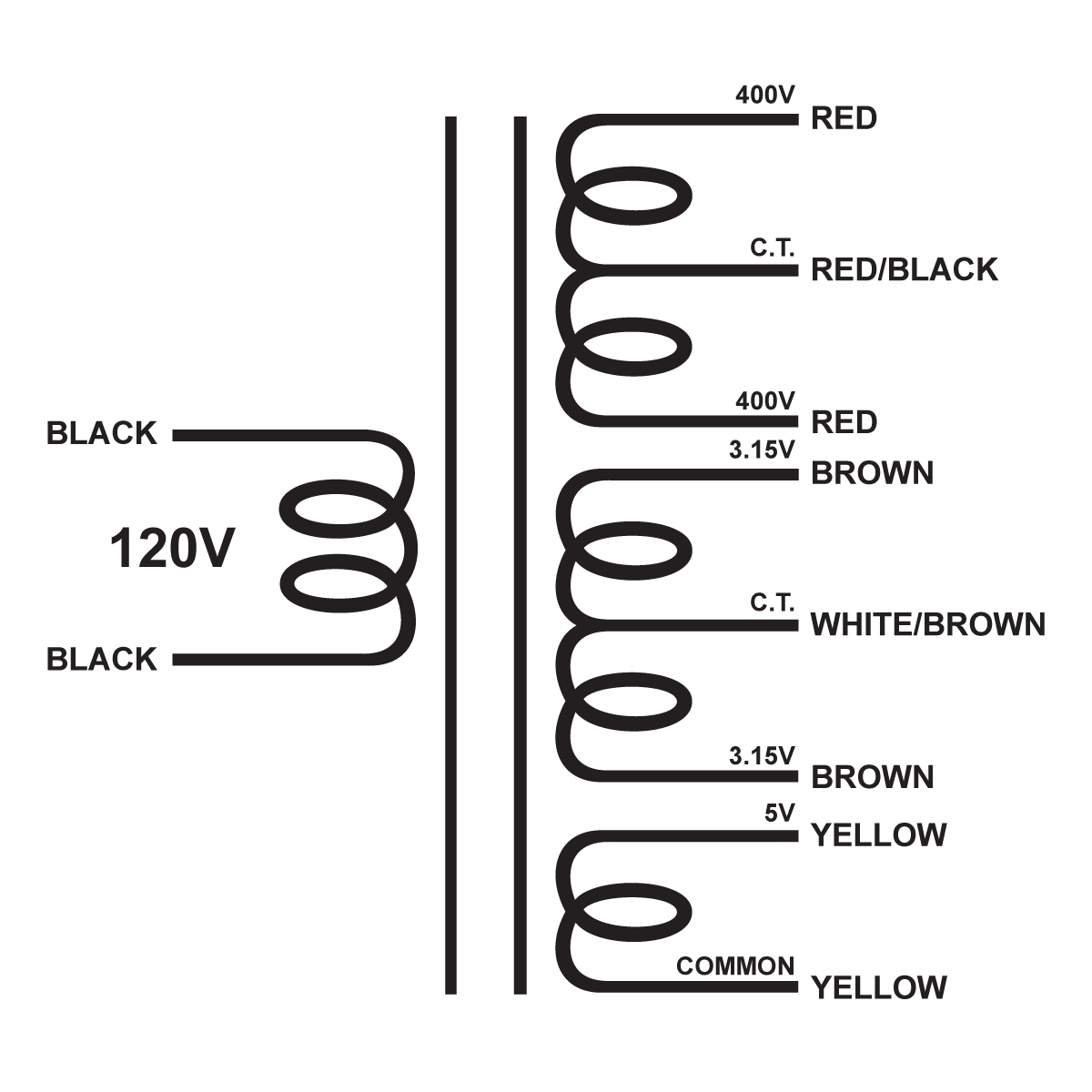

This transformer has multiple voltage windings, 800V (400-0-400) at 200mA center tapped, 6.3V (3.15-0-3.15) at 5A center tapped and 5V at 3A.

Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.

The Bobbin
EDCOR's standard bobbin with black finishing tape.

Termination
The terminations are UL1015 18 ga. lead wire.

Mounting
This unit comes with steel end bells for mounting with the use of four screws. The end bells are powder coated Gentian Blue (RAL 5010) to add to your tube display and overall appearance.

Overview
Specifications
Reviews
Product Files

Design
Mathematically designed to produce the specified voltage(s) when loaded.

Primary (Input)
Designed for 120V, 60Hz.

Secondary (Output)
This transformer has multiple voltage windings, 800V (400-0-400) at 200mA center tapped, 6.3V (3.15-0-3.15) at 5A center tapped and 5V at 3A.

Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.

The Bobbin
EDCOR's standard bobbin with black finishing tape.

Termination
The terminations are UL1015 18 ga. lead wire.

Mounting
This unit comes with steel end bells for mounting with the use of four screws. The end bells are powder coated Gentian Blue (RAL 5010) to add to your tube display and overall appearance.

Products specifications

Primary (input) Voltage	120Vrms, 60Hz.
Secondary (output) Voltage	800V(400-0-400)@200mA, 6.3V(3.15-0-3.15)@5A & 5V@3A
Bobbin Material	Nylon 6/6 GF-30
Flammability Rating	Class B 130°C
Core Material	M-6 29 ga. grain oriented lamination steel
Secondary Insulation (transformer)	Clear air dry polyester varnish
Termination	UL1015, 18 ga. lead wire
Mounting	Powder coated steel end bells
Color	RAL 5010 Gentian Blue
Weight	9.75 lbs.
Compliance	RoHS & REACH

Write your own review

Only registered users can write reviews

Review title:

Review text:

Rating:

Bad
Excellent

Existing reviews

Running a reference voltage in a regulated tube PSU!

This was chosen to replace the wrong replacement transformer in a 1000mA 0-600 volt Sorensen Nobatron power supply, commissioned by Raytheon for testing components in RADAR sets. The 250-0-250 barely gave me 320 volts. Now I have a full 600 volts DC that is rock steady. I needed a 240 volt tap to elevate the heater supplies, but we tacked in a separate 120-240 and it's chugging away. We even tapped the prerectifier output and doubled it for 450mA, regulated that with an 1156-800-0-800-1156 transformer, and high voltage FETs. This gives us up to 1.5KV @ 400 mA!!! I have US Navy transformers arranged in a series parallel bank now for 1 or 2 amps at either 3KV or 6KV, unregulated for RF testing, but the Nobatron only weighs 90 pounds. The RF power supply weighs in at a quarter ton! This PT has also been used for a few guitar amp projects. The weirder the better! Eight 6973 tubes? A pair of German EL156s? KT7s? TT21s? 6146Bs? I even used one to power ham radio stuff, like an old Drake transmitter, or various Heathkit models, sold without their original PSUs. I usually wind up going to a 500-0-500, or better. Sadly when grandpa dies, no one realizes that heavy box went with his ham radio. It goes to the dump and the radio goes to Goodwill.

From: Seth Burgin | Date: 11/18/2017 10:59 PM

Was this review helpful? Yes No (0/1)

Product Files

Dimensional Drawings

15000-EI150-200-0X.pdf

Products specifications

Primary (input) Voltage	120Vrms, 60Hz.
Secondary (output) Voltage	800V(400-0-400)@200mA, 6.3V(3.15-0-3.15)@5A & 5V@3A
Bobbin Material	Nylon 6/6 GF-30
Flammability Rating	Class B 130°C
Core Material	M-6 29 ga. grain oriented lamination steel
Secondary Insulation (transformer)	Clear air dry polyester varnish
Termination	UL1015, 18 ga. lead wire
Mounting	Powder coated steel end bells
Color	RAL 5010 Gentian Blue
Weight	9.75 lbs.
Compliance	RoHS & REACH
