Power transformer for a 120V, 60Hz., 230V, 50/60Hz., or 240V, 50/60Hz. line to 200V at 250mA and 6.3V at 4.5A.

Availability: Product is built to order.

Ship date: 8 weeks

1 review(s) | Add your review

Primary (Input) Voltage *

120Vrms, 60Hz.
230Vrms, 50/60Hz.
240Vrms, 50/60Hz.

$51.64

Qty:

Design
Mathematically designed to produce the specified voltage(s) when loaded.

Primary (Input)
Designed for 120V, 60Hz., 230V, 50/60Hz., or 240V, 50/60Hz.

Secondary (Output)

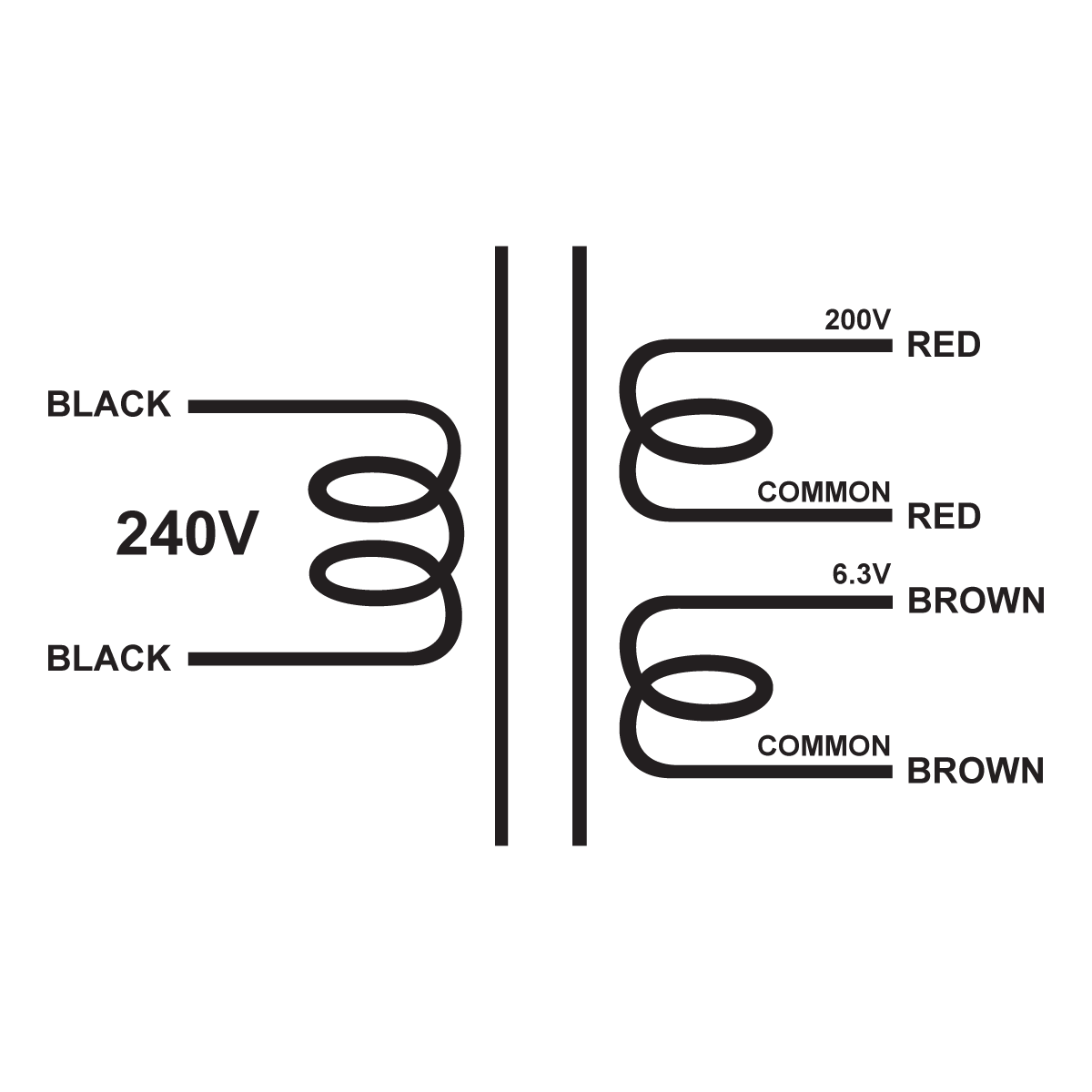

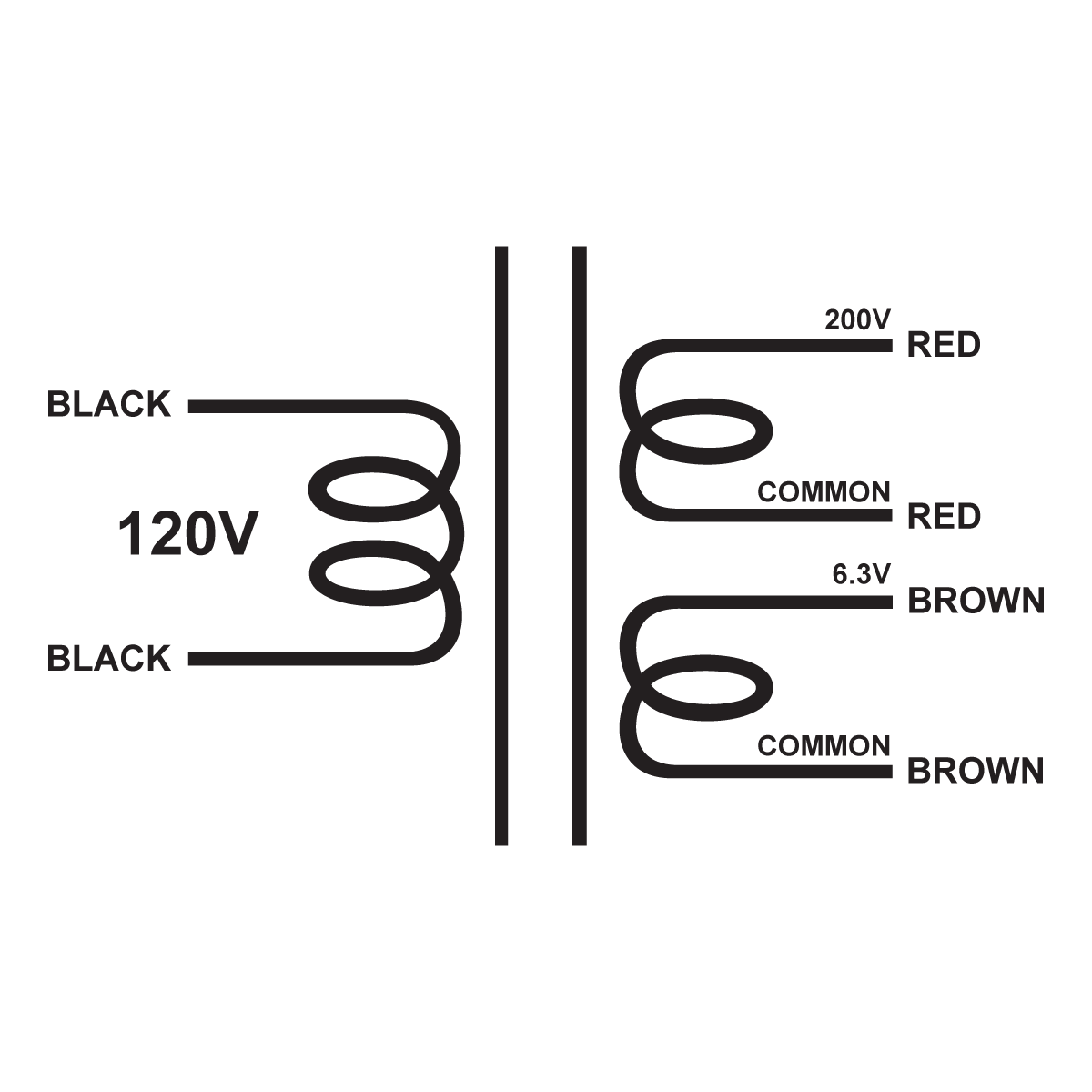

This transformer has multiple voltage windings, 200V at 250mA and 6.3V at 4.5A.

Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.

The Bobbin
EDCOR's standard bobbin with black finishing tape.

Termination
The terminations are UL1015 18 ga. lead wire.

Mounting

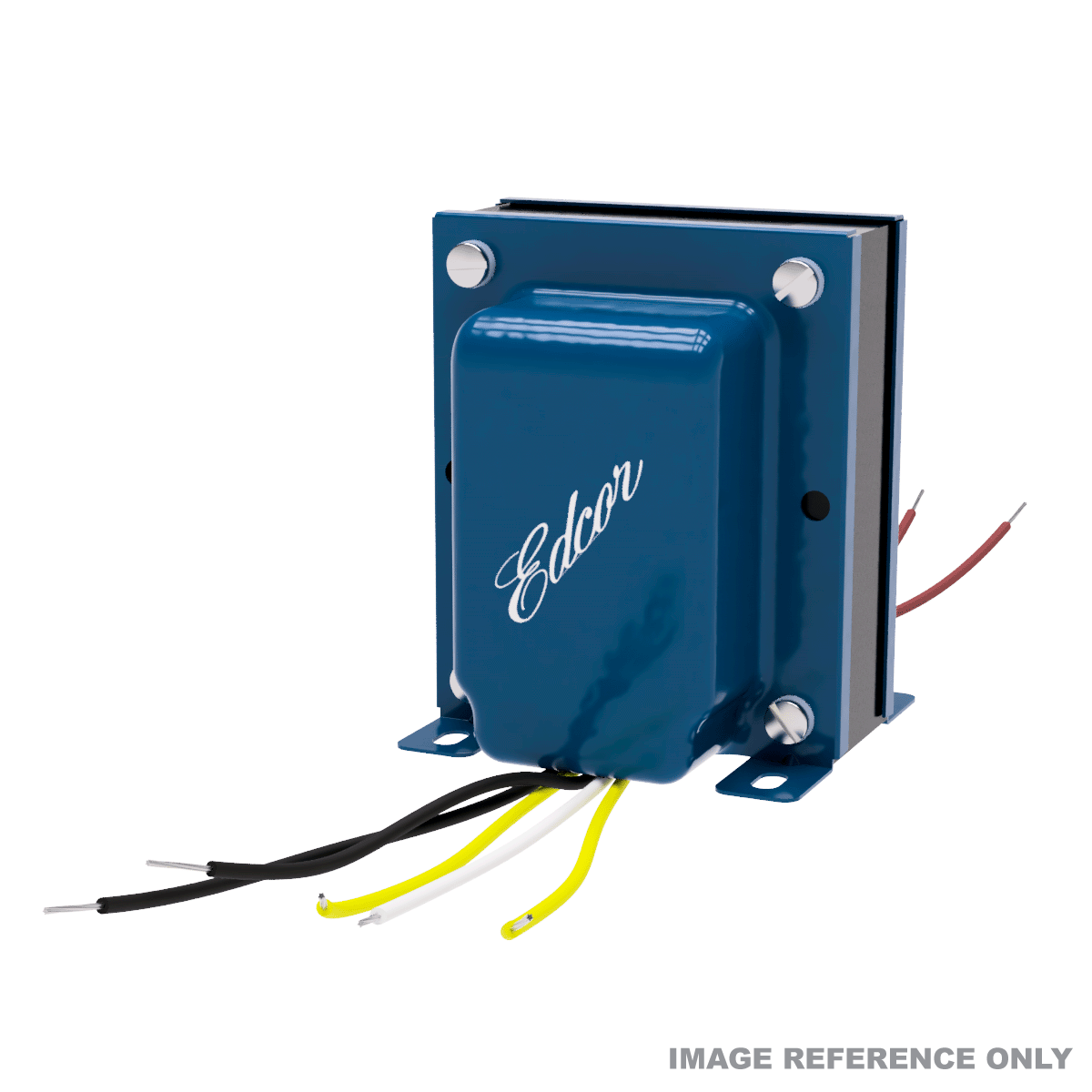

This unit comes with steel end bells for mounting with the use of four screws. The end bells are powder coated Gentian Blue (RAL 5010) to add to your tube display and overall appearance.

Overview
Specifications
Reviews
Product Files

Design
Mathematically designed to produce the specified voltage(s) when loaded.

Primary (Input)
Designed for 120V, 60Hz., 230V, 50/60Hz., or 240V, 50/60Hz.

Secondary (Output)
This transformer has multiple voltage windings, 200V at 250mA and 6.3V at 4.5A.

Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.

The Bobbin
EDCOR's standard bobbin with black finishing tape.

Termination
The terminations are UL1015 18 ga. lead wire.

Mounting
This unit comes with steel end bells for mounting with the use of four screws. The end bells are powder coated Gentian Blue (RAL 5010) to add to your tube display and overall appearance.

Products specifications

Primary (input) Voltage	120Vrms, 60Hz, 230Vrms, 50/60Hz. or 240Vrms, 50/60Hz.
Secondary (output) Voltage	200V@250mA & 6.3V@4.5A
Bobbin Material	Nylon 6/6 GF-30
Flamability Rating	Class B 130°C
Core Material	M-6 29 ga. grain oriented lamination steel
Secondary Insulation (transformer)	Clear air dry polyester varnish
Termination	UL1015, 18 ga. lead wire
Mounting	Powder coated steel end bells
Color	RAL 5010 Gentian Blue
Weight	4.5 lbs.
Compliance	RoHS & REACH

Write your own review

Only registered users can write reviews

Review title:

Review text:

Rating:

Bad
Excellent

Existing reviews

Fantastic transformer for 6V6 and EL84 Hi-Fi projects

This is my go-to transformer for Hi-Fi amplifiers where I run a 250V supply to the output stage. Combined with a solid-state rectifier, I've used it with great success in 6V6 and EL84 push-pull projects, and am including it in the plans for a single-ended 6L6 project. Superb quality and great looks at a price that cannot be beat.

From: Jason Thorpe | Date: 12/16/2015 10:57 AM

Was this review helpful? Yes No (0/0)

Product Files

Dimensional Drawings

Products specifications

Primary (input) Voltage	120Vrms, 60Hz, 230Vrms, 50/60Hz. or 240Vrms, 50/60Hz.
Secondary (output) Voltage	200V@250mA & 6.3V@4.5A
Bobbin Material	Nylon 6/6 GF-30
Flamability Rating	Class B 130°C
Core Material	M-6 29 ga. grain oriented lamination steel
Secondary Insulation (transformer)	Clear air dry polyester varnish
Termination	UL1015, 18 ga. lead wire
Mounting	Powder coated steel end bells
Color	RAL 5010 Gentian Blue
Weight	4.5 lbs.
Compliance	RoHS & REACH
